Case Study

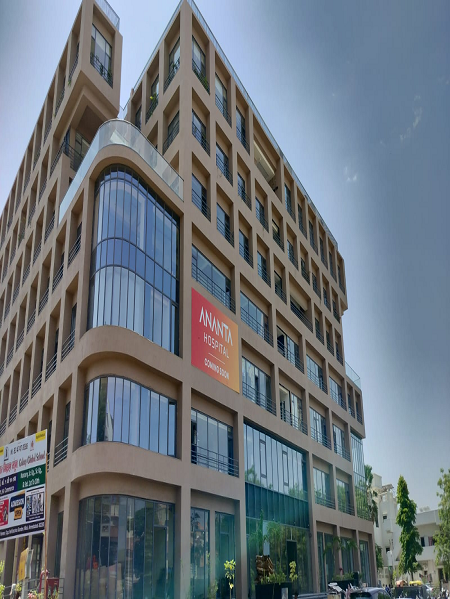

ANANTA HOSPITAL-ELV System
Ananta Hospital, New India Colony, Nikol, Ahmedabad
INSTALLED SYSTEMS
Public Address and BGM System:
- 16 Zone, Voice Alarm controller with built-in USB, MP3, AM/FM player. (QTY: 1NOS)
- 1000W Power Amplifier. (QTY: 2NOS)
- Voice Alarm Call Station (QTY: 2NOS)
- Ceiling Speaker, 10W Cabinet Loudspeaker (QTY: 439 NOS)
- Automatic Signal Attenuator interface (QTY: 1NOS)
Active and Passive Networking System:
CISCO Manageable routing core network L2 Switches (QTY: 12NOS)
24 port fiber Switches. (QTY:1NOS)
24-port loaded/unloaded keystone type patch panel. (QTY: 12NOS)
WIFI SYSTEM:
Wi-Fi 6 Dual-Band Indoor Access Point (QTY:68NOS)
Manageable PoE gigabit Switch (QTY:7NOS)
24-port loaded/unloaded patch Panel (QTY:07NOS)
Addressable Fire Alarm System:
8 loop Microprocessor based Addressable networkable Panel. (QTY: 2NOS)
Active Repeater Panel (QTY: 1NOS)
Analog Addressable Intelligent Multi (Smoke + Heat) Detector (QTY: 763 NOS)
Analog Addressable Intelligent Heat Detector (QTY: 9NOS)
Response Indicator (QTY: 133NOS)
Addressable Manual Call Point (QTY: 45NOS)
Addressable Sounder (QTY: 45NOS)
Unified Communication system:
Unified Communication Core System with processor. (QTY: 1NOS)
SIP IP PoE Powered phone (QTY: 1NOS)
IP PHONES (QTY: 42NOS)
BASIC PHONE with Key Pad (QTY: 146NOS)
50 Pair, 100 Pari, 200 Pari Krone Box unit with Tag modules (QTY: 13NOS)
ACCESS CONTROL SYSTEM:
4 door controller (QTY: 5NOS)
Proximity Card Reader (QTY: 20NOS)
Electromagnetic Lock Single Door (QTY: 20NOS)
Exit switch (Push Button) (QTY: 20NOS)
Green ABS Emergency Egress Call point with re-settable (QTY: 20NOS)
