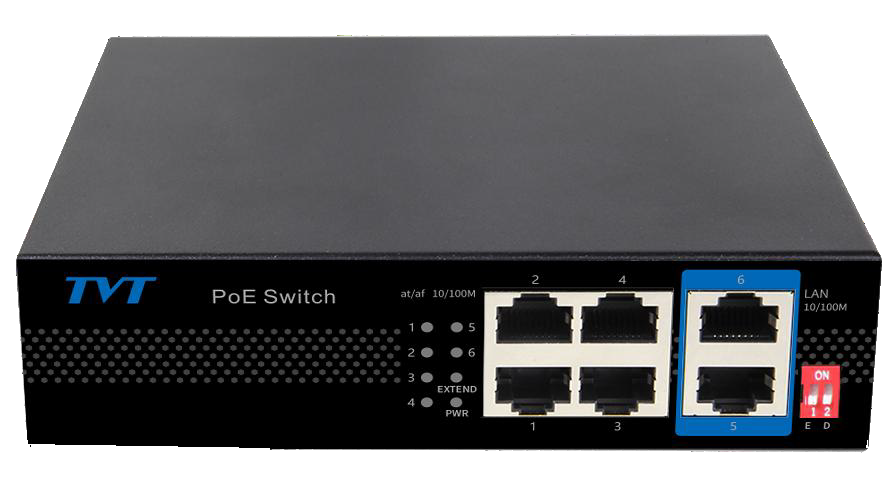

TVT- 4 Port AI PoE Switch

Download Get A Quote

Model: TD-B2204S1-PEU (4+2 PoE)
Brand: TVT

Description/Technical Specification:

• PoE Ports: 4 × 10/100 Mbps PoE Ports(RJ45)
• Uplink Ports: 2 × 10/100 Mbps Ports(RJ45)
• Network Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Switching Capacity: 1.2Gbps
• The Frame Filter & Transmission Rate: 14800pps The Most For The Long Distance Mode, 148800pps The Most For 100M Port, 1.488Mpps The Most For 1000M Port
• Function Switch: E File: Long Distance Transmission And VLAN Isolation Function. (Default: OFF, Use: ON)
  D File: AI Self-healing Mode. When The Network Fails, PoE Watchdog Will Restart The Power Supply Of The Device And Automatically Repair The Network Communication. (Default: OFF, Use: ON)
• LED Indicator: Power: PWR (green), Network: L/A (green), Functional Switch: EXTEND (green)
• Dimensions: 143×115×40mm

Product Quantity: 1

Category Name: CCTV Surveillance systems (IP/Conventional/Video Analysis)
