Wharfedale - ELYSIAN Series

Download Get A Quote

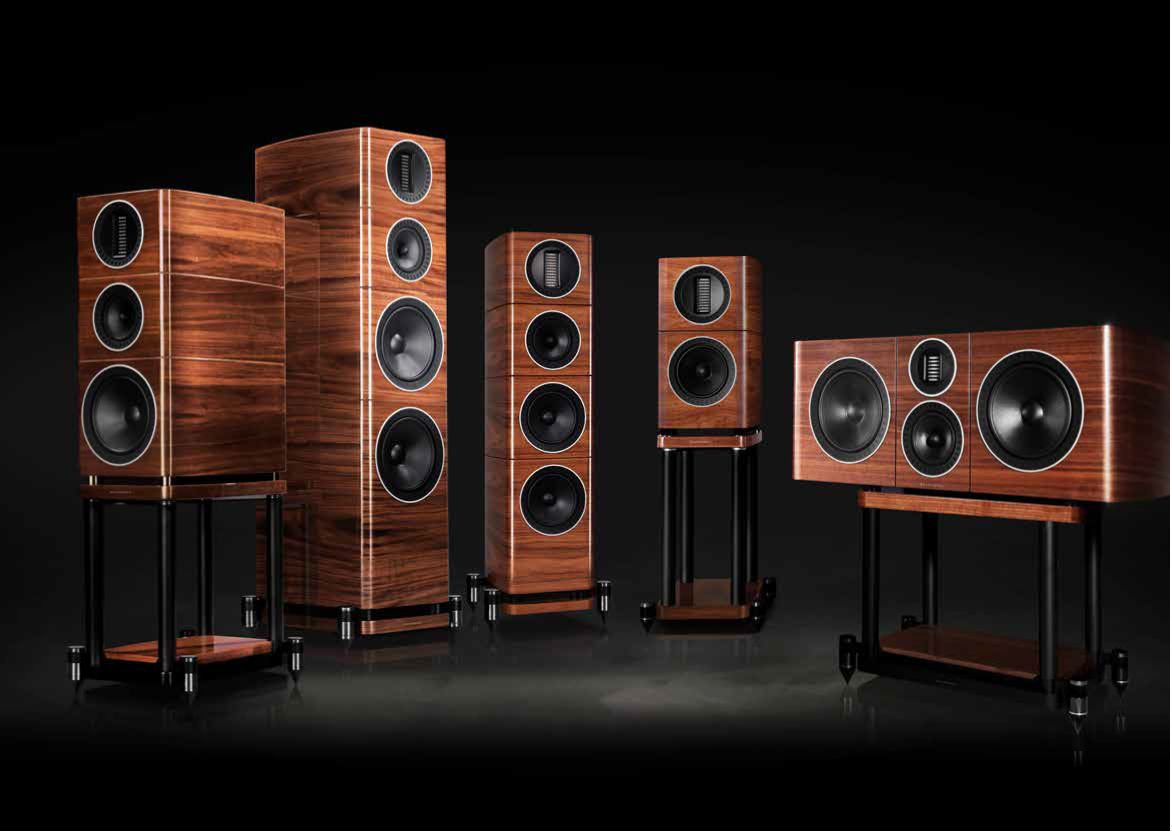

Introduction: ELYSIAN Series - THE FLAGSHIP SERIES
* ELYSIAN Air Motion Transformer- AMT Technology Is A Radically Different Way Of Reproducing High Frequency Detail Efficiently And Accurately. It Involves Large, Pleated Lightweight Diaphragm Driven Across Its Surface By Rows Of Strategically Placed Magnets. The Result Is A Wide Bandwidth Transducer That Achieves Low Distortion Naturally And Delivers Wonderful Musical Detail.
* The ELYSIAN Midrange Is A Unique Woven Glass Fibre Matrix For The Cone For Low Mass And Strength With Plasticity To Control Its Acoustics Sorrounded With Low-damping Foamed Rubber Coated For Durablity. Astonishing Reality To Voices And Istruments With A Central Phase Plug Shaped To Linearise The Output Across A Wide Bandwidth (even Well Off-axis)
*ELYSIAN BASS Provides A Stable And Solid Foundation For The Drive Units With Radiused Edges To Help Integrate The Driver Output With The Room Acoustics Incorporating The  unique SLPP (Slot Loaded Profile Port )bass Reflex System, Whereby The Lowest Frequency  is Vented To A Slot At The Base Of The Speaker, Specially Profiled To Equalise High Internal Pressure To Low Pressure In The Room.
Resulting In Lower Distortion Than Standard Bass Reflex Systems Along With Making Speaker Posititioning Less Critical Due To Air Being Dispersed Uniformly In The Room
* ELYSIAN Crossover Combines The Outputs Of Drivers Fine Tuned To Make The Blend Between Drive Units Seamless With Complete Phase Consistency Across The Drive Unit Output And Linear Throughput Across The Listening Room. Made Of Highest Grade Acoustically Transparent Components Througout The Crossover Construction, Ensuring That You Hear All The Musical Details With Nothing Held Back.

A Genuine Example Of Luxury Audio, ELYSIAN Offers Indulgence In Design, Materials, Aesthetics And Performance. A Thorough And No-compromise Approach Has Led The Wharfedale Engineers To Create A Benchmark In Affordable, Audiophile-grade Luxury Loudspeakers. Cutting-edge Design And Class-leading Technology Are Combined To Deliver Musical Reproduction That Will Proudly Challenge The World’s Finest Loudspeakers.

From The Piano-Lacquer Finished Cabinet, Created With Details Of True Craftsmanship, Through To The AMT (Air Motion Transformer) High-frequency Transducers And European Manufactured Bass Drivers, ELYSIAN Represents A New Standard In The World Of Home Audio Experiences.

The Resultant Sound, From The Finely Balanced Driver Selection And Expert Crossover Design, Matches The Pristine Design With A Degree Of Natural Transparency That Will Leave You Breathless.One For The Connoisseur And One For The History Books, ELYSIAN Will Leave You Questioning, How Is This Possible In This Price Class?
ELYSIAN Is Truly An Audio Engineering Work Of Art..

Product Descriptions:
Model: Wharfedale UK Elysian 4
Description:  3-way Tower Floor Standing Speaker (L+R) 3-way Design,  Frequency Response :30Hz - 22kHz (+/-3dB), Nominal Impedance :  4Ω (compatible 8Ω ), Sensitivity : 92dB (2.83V @1m), Recommended Amplifier Power: 15 - 250W , Dim :1188 On Plinth X 402 On Plinth X (432+30) With Terminals, Net Wt : 49.5kg/pcs

Model: Wharfedale UK Elysian C
Description: 3 Way Center Speaker( Ultra Premium 3-way) Bass Driver :  8.5" (220mm) Coated Fibre Glass Matrix Cone X2
Mid Range Driver:  6" (150mm) Coated Fibre Glass Matrix Cone Treble Driver: 27*45mm AMT Crossover Frequency  360Hz, 2.9kHz
Net Weight 30.2kg/pcs.

Model: Wharfedale UK WH-DFS
Description:  Surround Back Diffuse Speakers Speaker (Back L+R) Bass Driver 2 X 100mm. Tweeter Dome 25mm. Power Handling 15-200W. Impedance 6 Ohms.

Model: wharfedale UK WWS-80
Description: SL-SR In-Wall Surround Speakers 8" Polypropylene 200mm Bass Driver, 1" Adjustable Titanium Dome Tweeter, Sensitivity : 89dB, Power Rating 40W/100W Peak, Spl: 99dB, Impedance: 8Ohm, Freq. Resp.: 43Hz~20Khz, Crossover: 120dB,  hole Cutting Size 326 Mm X 224 Mm, Depth104mm. Outer Size 348 X 246mm).

Model: Wharfedale UK WCM 80
Description: Height Ceiling Speaker (Atmos) 8" Polypropylene, In-Ceiling, Adjustable Titanium Dome Tweeter, Borderless Magnetic Grille, Hole Cutting Size 245 Mm, Depth 108 Mm. Outer Size 268mm).

Model: wharfedale UK WWS-65
Description: In-Wall / On Wall L+R Surround Speaker 6.5" Polypropylene, In-Wall,adjustable Titanium Dome Tweeter,borderless Magnetic Grille, Hole Cutting Size 278mm X 191 Mm, Depth100mm. Outer Size 298 X 211mm, Impedance: 8 Ohms, SPL : 98 Db.

Model: wharfedale UK SW15
Description: Active Dynamic‐Drive IB Subwoofer System 15‐Inch (380mm)  Woofer, Built‐In Power Amp, Output Power : 400W-850W, Frequency Response:30 Hz – 120 Hz, S/N Ratio: >85dB, Phase Inversion, Auto-on/off., Wt: 27Kg,  Dim: Height: (540+58)mm(with Feet) ,Width: 500mm, Depth: (540+15)mm .



Product Quantity: 1

Category Name: Home Theaters, Mini Theaters and Pure Cinema
