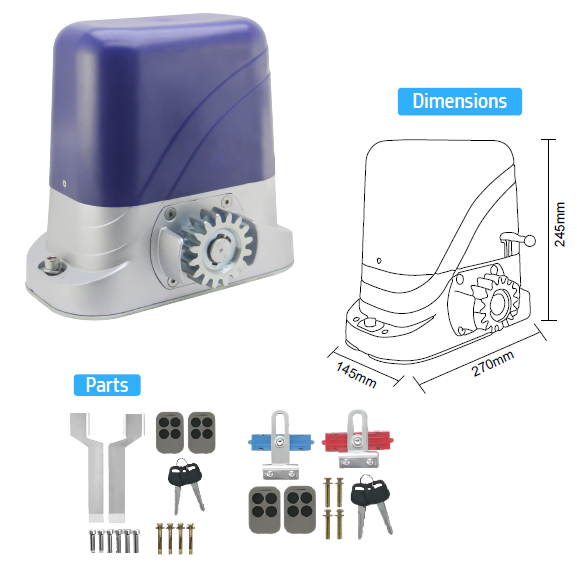

Hawkeye- Sliding Gate HE-2206S 600KG

Model: HE-2206S
Brand: Hawkeye

Features:

• AC/DC Motor With Built In Control Panel.
• All Metal Gears Make It Durable And Long Lasting For Medium Duty Gate Application.
• Soft Start And Soft Stop(optional).
• Resistance Sensitivity And Auto-closing Delay Time Adjustable .
• Stop/Reverse In Case Of Obstruction During Gate Opening /closing.
• Reliable Mechanical Spring Limit Switch Or Magnetic Limit Switch Optional.
• Aluminum Alloy Base Suits For All Kinds Of Tough Environment.
• Manual Override In Case Of Emergency Or Power Failure.
• Back Up Battery And Solar System Are Available For DC Version.
• 12 Months Guarantee; Lifelong Post Sales Service

Technical Specification:

• Rated Voltage: 220V±10%
• Electric Motor: 220VAC
• Rated Motor Power: 250W
• Gear Modulus: G=4
• Max Loading Weight: 600 KG
• Open/Close Speed: 12m/min
• Output Speed: 50r/min±10%
• Output Torque(N.m): 16N.m
• Limit Switch Type: Spring/Magnetic Limit Switch For Optional
• Max.Pull Force: 1200N
• Working Temperature: -20°C ~ +55°C

Product Quantity: 1

Category Name: Entrance Automation System
