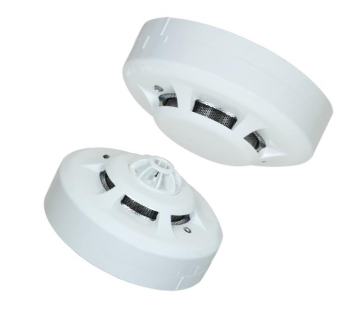

AGNI QUICK SENSE SERIES - SMOKE AND MULTI DETECTORS

Model: QS-388-2L
Photoelectric Smoke Alarm With Remote LED Output

Model: QS-388-2H
Photoelectric Smoke And Heat Alarm

Model: QS-388-2HL
Photoelectric Smoke And Heat Alarm With Remote LED Output

Features:

• Advanced Detection And Discrimination Algorithms.
• Easy Installation And Maintenance.
• Super Sleek Low-Profile Housing Design.
• Durable Sensor Head, No Need For Replacement.
• SMD Circuit Board, Design, Satisfactory Quality And Reliability Guaranteed.
• Integrated Heat Detector For SD 388-2H Models.
• N/C (normal/close)-N/O (normal/open) Selectable Relay Output.
• AR (Auto Reset) Function For Security Systems (optional For 4 Wire Models)
• Two-year Limited Warranty.
• Size: 102mm Diameter With 43mm Height Only.


Product Specification:

Model No	2/4  Wire	Heat Sensor	Volts DC Max./min.	Stand By Current	Alarm Current	Surge Current	Cycle Time	Start Up Time
QS-388-2L	2	-	10.8v / 33v	40 Micro Amp	55 Mili Amp	100 Micro Amp	1-5 Sec	30 Sec
QS-388-2H	2	135±5°F	10.8v / 33v	40 Micro Amp	55 Mili Amp	100 Micro Amp	1-5 Sec	30 Sec
QS-388-2HL	2	135±5°F	10.8v / 33v	40 Micro Amp	55 Mili Amp	100 Micro Amp	1-5 Sec	30 Sec



Specification:

• Smoke Sensitivity: 0.98--2.40%/FT Obscuration (UL) ; 0.08--0.14 DB/m (EN)
• Ceiling Spacing: 50 Footrating For Heat Sensor
• Temperature Range: -10°C To 50°C F40
• Humidity: 0 To 95% RH, No Condensation Or Icing
• Dimensions: 102mm (dia.) X 43mm (ht) With Base
• Weight: 120g/set With Base

Product Quantity: 1

Category Name: Fire Detection Systems
